ezy all in one

Hydrolution Ezy Idrosplit All in One

FDCM60VNX-P, FDCM71VNX-P, FDCM100VNX-W

Typology

Outdoor units
Solution

Cooling, heating and DHW, Heat pump air to water
Applications

B&B/Hotel, Flat complex, Office, Store, Whole house

Share this product:

HYDROLUTION EZY IDROSPLIT WITH PRODUCTION OF DOMESTIC HOT WATER

HEATING AND COOLING WITH DHW

The EZY Idrosplit All in One combination provides the complete solution for all heating, cooling and DHW needs.

Idrosplit R290

Constant heating flow temperature down to 75°C. Sizes 6 and 8 kW.

A GAS FREE SYSTEM

Each EZY Idrosplit All in One combination consists of a monobloc FDCM outdoor unit and an HMM module, containing: integrated DHW tank, circulation pump, electric resistance, expansion vessel and valves.
EZY Idrosplit All in One has become gas-free: only water circulates inside the unit!

Idrosplit R32

10 kW all in One Hydrosplit in R32 with integrated 180 litre tank.

hydrolution ezy

Features Hydrolution Ezy Idrosplit All in One

A+++

Energy class in heating at 35°C

-25°C

Maximum efficiency up to -25° C

43°C

Maximum outdoor temperature in cooling

5.14

Maximum COP value (6 kW, R290)

75°C

Constant heating flow temperature down to -25°C (R290)

59 dB

Max. sound power, silence guaranteed (6 kW, R290)

6 – 8 kW

Power sizes Ezy R290

10 kW

Power sizes Ezy R32

EZY IDROSPLIT ALL IN ONE CONFIGURATION

The EZY Idrosplit All in One R290 combination provides the complete solution for all heating, cooling and domestic hot water needs.
Each EZY Idrosplit All in One combination consists of a monobloc FDCM outdoor unit and an HMM module, containing: integrated DHW tank,
circulation pump, electric resistance, expansion vessel and valves.
The advantages of the EZY Idrosplit All in One solution:

  • HEATING, COOLING AND HOT WATER with a single internal HMM module;
  • EASY INSTALLATION AND OPERATION, the indoor and outdoor units are compact and make installation as simple as possible;
  • GAS FREE: hydraulic connection between external and internal units, the refrigeration circuit is confined to the external unit only;
  • ideal for residential use in apartments and small homes; three adjustable control levels (economic, normal, luxury) for the production of DHW;
  • CAPACITIES AVAILABLE 6 kW – R290, 8 kW – R290,10 kW – R32

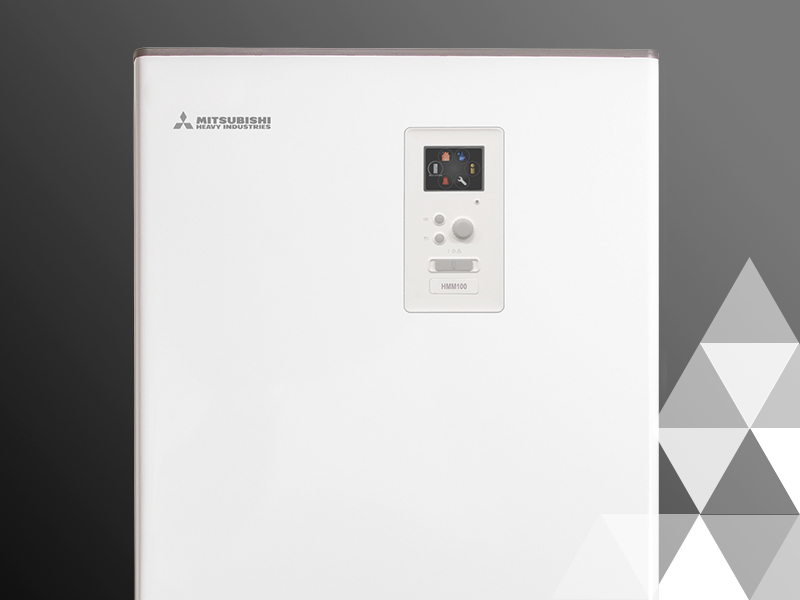

HMM MODULE

The EZY Idrosplit All in One solution by HYDROLUTION allows to satisfy, with a plug-in solution, the main needs of heating, cooling and DHW production of a home.

ADVANTAGES

  • absence of refrigerant gas in the machine and consequently in the home;

  • integrated control on the machine which facilitates the management and installation of the system;

  • integrated circulator for heating and cooling;

  • integrated 180 liter tank for the production of DHW;

  • possibility of single-phase or three-phase power supply via special terminal block.

THE CONTROL SYSTEM

To guarantee maximum efficiency of an air-water heat pump system like that of HYDROLUTION, MHI has designed and created a complete line of management and monitoring devices [RC-HY40-W].

RC-HY40-W FEATURES AND FUNCTIONS

RC-HY40-W is the control unit for the management and regulation of centralized and autonomous systems created using the HYDROLUTION system. Specifically, it allows you to:

  • manage the operating modes (on/off) and the system time schedules;
  • ensure efficiency in the regulation of the system;
  • manage the temperature of the delivery water automatically;
  • manage the anti-legionella cycles and the activation of the DHW
    recirculation pump;
  • activate the ‘Silent’ function.
